Marine machinery

Marine machinery

We are able to respond to Products for all shipping class.

We have been continuing to manufacture main components of turbocharger for marine diesel engines and steering engine over more than half century with the integrated production system which is from casting to machining.

It is thin and highly precise demand quality, and most of them need certification of shipping class.

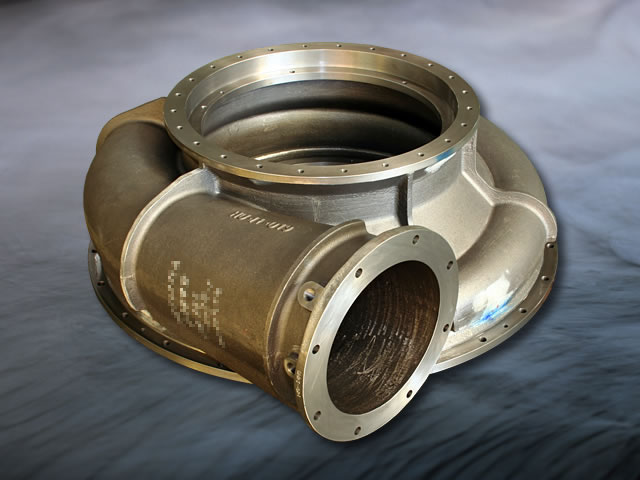

Vortex chamber of turbocharger
Product Name:

Vortex chamber of turbocharger

Material:FCD450
Weight/pc:220kg
Comment:A turbocharger is an important auxiliary unit of the diesel engine which uses an engine exhaust gas and sends a lot of air by high pressure efficiently into an engine.
The Vortex chamber is part fitted on its air intake.

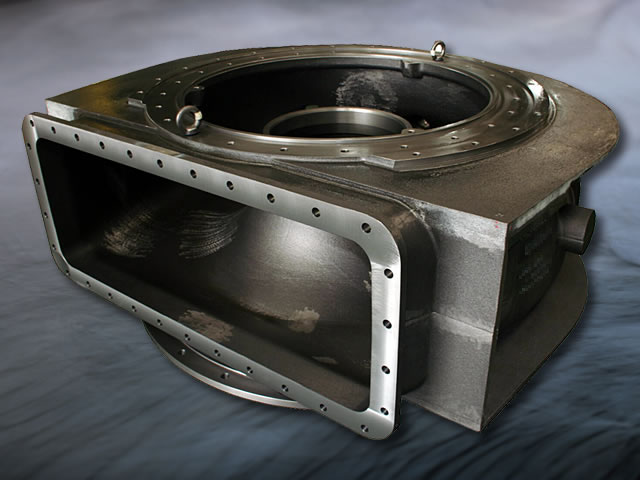

Turbocharger exhaust gas outlet casing
Product Name:

Turbocharger exhaust gas outlet casing

Material:FCD450
Weight/pc:1340kg
Comment:The exhaust gas led to a turbocharger is higher more than 400 ℃.
Outlet casing is one of parts which demand high machining accuracy and complicated shape with thin casing.
It is required in order to maintain the stable performance under the high temperature condition.

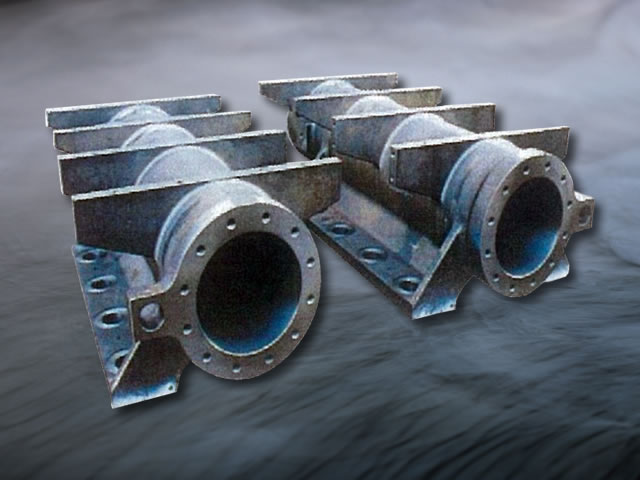

Steering engine and Hydraulic cylinder
Product Name:

Steering engine and Hydraulic cylinder

Material:FCD450
Weight/pc:1130kg
Comment:The hydraulic cylinder is the parts of the steering engine and is used in pressure more than 20Mpa as a source of torque.
Therefore, it is necessary to satisfy a high demand about quality.

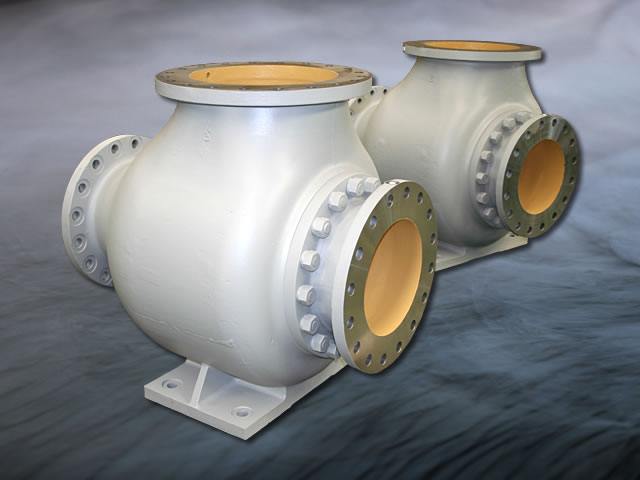

Jet pump
Product Name:

Jet pump

Material:FCD450
Weight/pc:630kg
Comment:A pump casing is one of the important parts of the pump used onboard.
We have been delivering it with total process including casting, machining, hydraulic pressure test and painting.
